Build container images

When using LUMI-K, you might need to build your own container images before deploying them. Possible reasons for doing so, include but not limited to:

Package your application: this is the case when your application is available as source-code or executable, and you want run it in LUMI-K as containers.
Specific dependencies: you are using an already built container image but the version of libraries, tools, or configurations inside it are not suitable for your needs.
Rootless compatibility: Many public and open-source images assume root privileges. Re-building these images lets you ensure the application runs without root, which is a best practice enforced in LUMI-K.

LUMI-K's registry has an image size limit of 10 GB, this is because smaller images download faster, which reduces startup time for Pods in Kubernetes and improves the responsiveness of scaling operations. They also use less storage in registries and on cluster nodes, which matters in multi-tenant environments like LUMI-K. Moreover, a smaller image contains fewer packages and files, which reduces the potential attack surface and lowers the chance of including outdated or vulnerable components. This makes maintenance easier and improves overall security. Since smaller images include only what the application needs, they are more predictable, easier to debug, and simpler to reproduce across environments.

Building images locally¶

In this example, we are going to build a custom version of the official nginx image built over the Alpine Linux distribution, and make the necessary changes to make it rootless and compatible with LUMI-K policy. Three steps are needed to build an image in your machine or server:

First, create a file named Dockerfile that contains the instructions for building the custom container image. It specifies the base image to use, what files to add, what commands to run, and what settings the final image should have:
```
FROM nginx:alpine

# support running as arbitrary user which belongs to the root group
RUN chmod g+rwx /var/cache/nginx /var/run /var/log/nginx && \
    chown nginx.root /var/cache/nginx /var/run /var/log/nginx && \
    # users are not allowed to listen on privileged ports
    sed -i.bak 's/listen$.*$80;/listen 8081;/' /etc/nginx/conf.d/default.conf && \
    # Make /etc/nginx/html/ available to use
    mkdir -p /etc/nginx/html/ && chmod 777 /etc/nginx/html/ && \
    # comment user directive as master process is run as user in OKD anyhow
    sed -i.bak 's/^user/#user/' /etc/nginx/nginx.conf

WORKDIR /usr/share/nginx/html/
EXPOSE 8081

USER nginx:root
```
this Dockerfile is: * Uses the nginx:alpine image hosted in Docker hub registry as base image. * Gives write permissions to the root group (not the root user) to several folders that nginx needs to write to (/var/cache/nginx, /var/run, /var/log/nginx, and /etc/nginx/html/). LUMI-K runs application using a random user and the root group. * Changing the port where nginx listens to, as only root is allowed to listen on privileged ports (<1024). * And finally comment out the user configuration directive.

The original nginx:alpine image has 5 layers, and the RUN directive in our Docker file will add a new layer.

A simpler example of Dockerfile could be:
```
FROM ubuntu

RUN apt install git
```
This is installing git in the ubuntu:latest base image, and add also a new layer.

See the Dockerfile reference docs.
Second, build the container image and give it a tag. This can be done by executing the following command in the same directory as your Dockerfile.
```
docker build . -t nginx:rootless
```
The instructions in your Dockerfile will be executed one by one to produce the final image container image. The value you pass to -t is the name and tag that will be assigned to the image you are building. The name identifies the image, and the tag (after the colon) identifies a specific version of that image.

You can see the built image in you local registry by running
```
docker image ls
```
Finally, if you want to share your image with others, you will need to publish it to a remote registry. To do so, you will need to give your image a new tag that points to the remote registry and then push it.
```
docker tag nginx:rootless <remote-registry.example.com>/<registry-username>/nginx:rootless
docker push <remote-registry.example.com>/<registry-username>/nginx:rootless
```
Note

Images built for machines with architecture other than amd64 are not runnable on LUMI-K. Either re-build them on an amd64 machine or convert them. You can also rebuild them directly in LUMI-K as described in the following section.

Using LUMI-K to build container images¶

The methods below use LUMI-K to build container images.

Using a local folder for building¶

This method allows building an image using a local folder containing a Dockerfile and the other required project files (source code, executables, configuration, etc.). It is useful when it is not possible or inconvenient to allow LUMI-K to clone your git repository directly. As prerequisites, you should have:

Created a project in LUMI-K as described here
Logged to the cluster using the oc CLI

Steps:

Create OKD BuildConfig with build source set to binary. Be sure to not be in a directory under git version control:

$ oc new-build --to=my-hello-image:devel --name=my-hello --binary

The output should be similar to:

    * A Docker build using binary input will be created
      * The resulting image will be pushed to image stream tag "my-hello-image:devel"
      * A binary build was created, use 'start-build --from-dir' to trigger a new build

--> Creating resources with label build=my-hello ...
    imagestream.image.openshift.io "my-hello-image" created
    buildconfig.build.openshift.io "my-hello" created
--> Success

OKD creates a BuildConfig with name my-hello object in your active project, it also creates a placeholder ImageStream object with name my-hello-image to host the resulting image.

Trigger the build process by providing the build artifacts (i.e., Dockerfile amd other dependencies if any) to LUMI-K.
```
oc start-build my-hello --from-dir=/path/to/artifacts --follow
```
Once the build is successfully completed, the resulting image will be available in LUMI-K image registry.

Using the Source to Image (S2I) mechanism¶

Use S2I builds when you want to build a container image directly from source code without writing your own Dockerfile. S2I lets LUMI-K handle the build process using its default builder images for different runtime environment (e.g., Python, Node.js, Java, Go, PHP, Ruby). You can see the list of available build images in LUMI-K by running the following command:

oc get is -n openshift

S2I is a good choice when:

Your application fits well into a standard runtime environment (e.g., Python/Flask, Node.js/Express, Java/Spring).
You prefer to avoid maintaining Dockerfiles.
You want LUMI-K to handle dependency installation, environment setup, and incremental builds.

S2I is not ideal when you need full control over the container image, custom OS packages, non-standard runtimes, or complex build steps. In such cases, a Dockerfile or binary build is better suited.

Assume you have a private Git repository containing a python application, you can import your application for build and deployment in LUMI-K using the web console or the CLI.

Using the web console¶

Click the plus button on the top right of the web console and choose import from Git.

Import git project

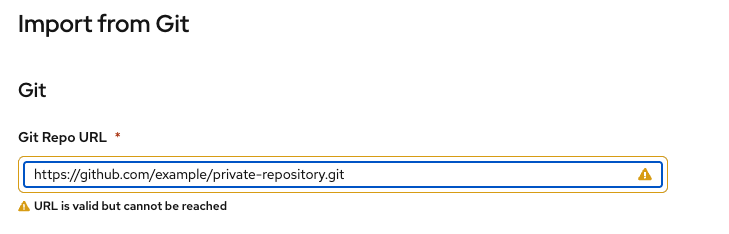

Enter the URL to your git repository in the Git Repo URL field. If your repository is private you will see the warning "URL is valid but cannot be reached"

Import git error

Next, you need to provide authentication credentials. Two options are possible, a token or an ssh private key:
Option 1: Using a Token for Git Authentication
1. Generate a Personal Access Token:
  - GitHub:
    - Go to your GitHub account settings.
    - Navigate to "Developer settings" > "Personal access tokens".
    - Click on "Generate new token".
    - Select the scopes you need (typically, you'll need repo scope for private repositories).
    - Generate the token and copy it.
  - GitLab: - Go to your GitLab profile settings. - Navigate to "Access Tokens". - Give your token a name, select the required scopes (e.g., api, read_repository), and create the token. - Copy the token.

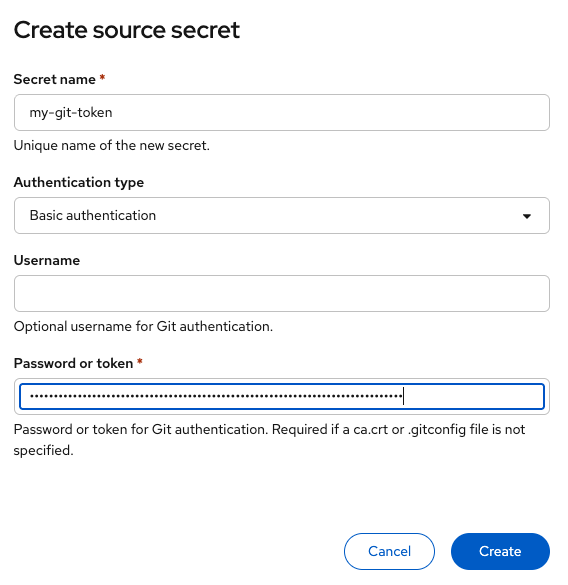

2. Add the Token to LUMI-K:
  - Under "Source Secret" choose "Create new Secret".
  - Name the secret, under "Authentication type" choose "Basic Authentication".
  - Paste the token and create.
Option 2: Using a Private SSH Key
1. Generate an SSH Key Pair (if you don't have one already):
  - Open a terminal and run the following command to generate a new SSH key pair:
```
ssh-keygen -t rsa -b 4096 -C "your_email@example.com"
```
  - This will create two files: a private key (id_rsa) and a public key (id_rsa.pub).
2. Add Your Public Key to Your Git Hosting Service:
  - GitHub:
    - Go to your GitHub account settings.
    - Navigate to "SSH and GPG keys".
    - Click "New SSH key" and paste the contents of your id_rsa.pub file.
  - GitLab:
    - Go to your GitLab profile settings.
    - Navigate to "SSH Keys".
    - Add a new SSH key and paste the contents of your id_rsa.pub file.

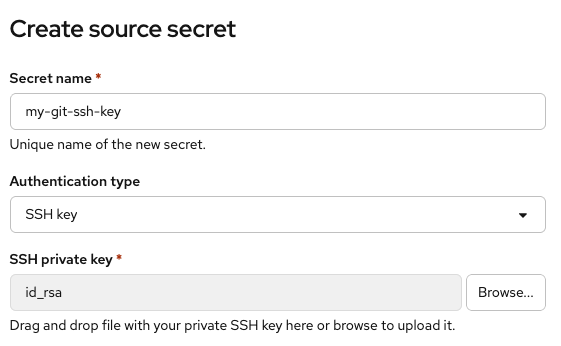

3. Add the Private SSH Key to LUMI-K:
  - Under "Source Secret" choose "Create new Secret".
  - Name the secret, under "Authentication type" choose "SSH Key".
  - Paste the contents of your private SSH key (id_rsa) and create.

Using the CLI¶

Log into LUMI-K with (oc) CLI:
```
oc login <cluster-url>
```

Create a New Project:

oc new-project <project-name> --display-name=<display-name> --description="lumi_project:<project-number>"

Create SSH Key Secret:

oc create secret generic <secret-name> --from-file=ssh-privatekey=<path-to-private-key> --type=kubernetes.io/ssh-auth

Link the Secret to the Builder Service Account:
```
oc secrets link builder <secret-name>
```

Deploy the Application:

oc new-app <repository-url> --name=<application-name>

You can follow the build progress:
```
oc logs bc/<application-name>
```
Once the build ends, the resulting image will be pushed to LUMI-K's integrated registry. Moreover, the container image will automatically be instantiated in LUMI-K via a Deployment object.
Optionally, you can expose your application to internet by running:
```
$ oc expose service <application-name>
```
This will create a Route that you can check with:
```
oc get route <application-name>
```
A new build can be triggered for the application by:
```
oc start-build <application-name>
```

Alternatively, to trigger a build from a Gitlab or a Github repository you can checkout the webhooks documentations.

Using the inline Dockerfile method¶

It is possible to create a new build using a Dockerfile provided in the command line. By doing this, the Dockerfile itself will be embedded in the Build object, so there is no need for an external Git repository.

oc new-build -D $'FROM almalinux:10'

In this example, we will build an image that is a copy of AlmaLinux 10. It is also possible to create a build from a local Dockerfile:

cat Dockerfile | oc new-build -D -

Troubleshooting¶

If a build fails due to authentication issues, set the build secret explicitly:

oc set build-secret --source bc/<application-name> <secret-name>

If your build fails or it is very slow in LUMI-K, it could mean that you need to assign more resources to the BuildConfig object. By default, the BuildConfig uses the default request and limits for running the builder Pod. In that case you need to modify the BuildConfig YAML definition using the console or the CLI.

Update BuildConfig resources using the CLI¶

First, you need to get he YAML definition of the failed BuildConfig.

oc get bc <name-of-failed-bc> -o yaml > fixed_buildconfig.yaml

Edit the fixed_buildconfig.yaml file in your favorite editor by adding the desired resources under .spec as follows:

apiVersion: build.openshift.io/v1
kind: BuildConfig
metadata:
  name: my-app-build
spec:
  source:
    type: Git
    git:
      uri: https://github.com/example/my-app.git

  strategy:
    type: Docker
    dockerStrategy: {}

  output:
    to:
      kind: ImageStreamTag
      name: my-app:latest
  resources:
    requests:
      cpu: "500m"
      memory: "1Gi"
    limits:
      cpu: "1"
      memory: "2Gi"

Info

You can also use the command oc edit bc <buildconfig-name> to modify the BuildConfig object.

Apply the changes:
```
oc apply -f fixed_buildconfig.yaml
```
Run the build again:
```
oc start-build <buildconfig-name>
```

Update BuildConfig resources using the Web console¶

In LUMI-K console, navigate to Builds > BuildConfigs and click on your BuildConfig.
Select the YAML tab.

Add the desired resources under .spec as follows:

apiVersion: build.openshift.io/v1
kind: BuildConfig
metadata:
  name: my-app-build
spec:
  source:
    type: Git
    git:
      uri: https://github.com/example/my-app.git

  strategy:
    type: Docker
    dockerStrategy: {}
  output:
    to:
      kind: ImageStreamTag
      name: my-app:latest

  resources:
    requests:
      cpu: "500m"
      memory: "1Gi"
    limits:
      cpu: "1"
      memory: "2Gi"

Save the changes.
Run the build again:
```
oc start-build <buildconfig-name>
```

Note that the ratio between requests and limits cannot be more than 5x. Check out for more information in here.
