Command line tool usage

LUMI-K can be used via the command line either with OpenShift's oc tool or with the kubectl tool from Kubernetes. Certain features specific to OpenShift are only available when using the oc tool.

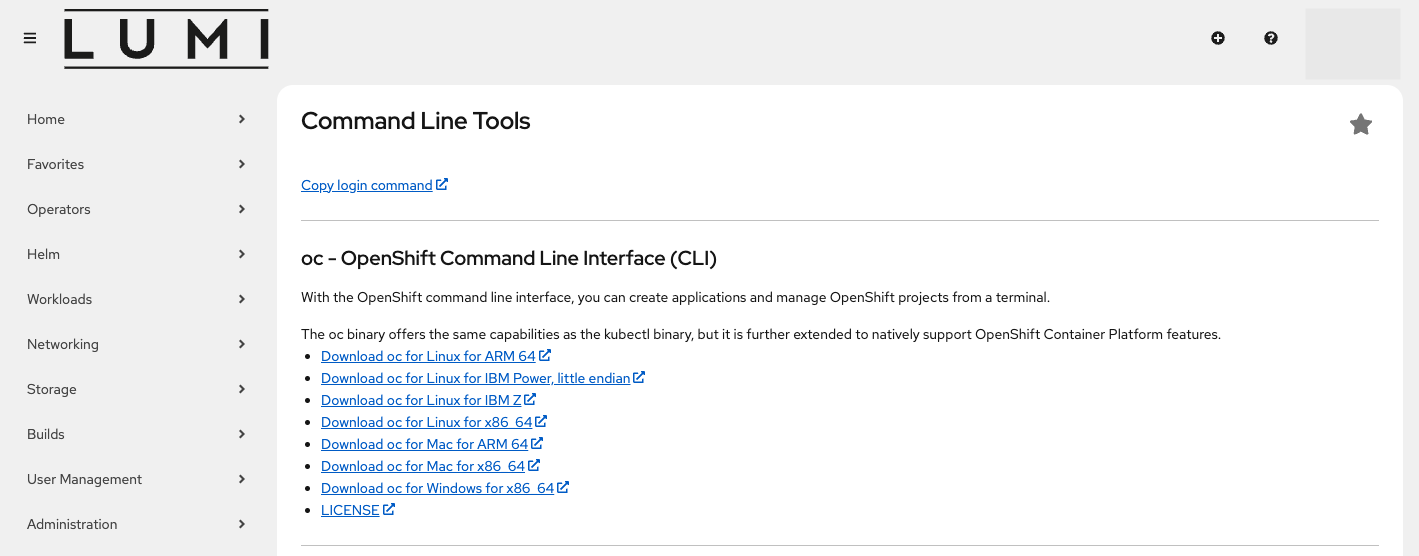

The "Command Line Tools" page in the LUMI-K web UI

The oc tool is a single binary that only needs to be included in your PATH environment variable . Instructions for downloading the oc tool including the download link for several platforms and operating systems can be found in Command Line Tools page in the LUMI-K web interface:

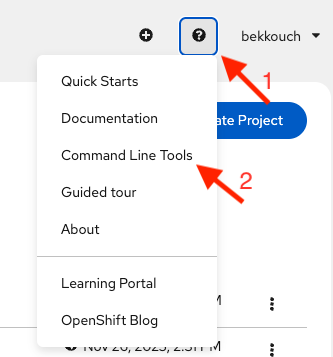

You can also visit the command line tools page using the help menu in the top right corner of the web interface

Download the necessary package and copy it in your PATH.

In order to test that it was properly installed, open a new terminal, go to any folder, and run:

$ oc --help

It should show the list of all available commands.

How to login with oc?

It is possible to copy the login command directly from the web console of LUMI-K by clicking the dropdown menu next to the username in the top right corner.

As an additional security measure, you will be prompted to log in again via the web interface before the command and token are revealed. Copy the command and paste it in a terminal to start using LUMI-K via the command line. The command looks like:

oc login  --server=https://api.v1.lumi-k.eu:6443 --token=<secret access token>

Session lifetime

After login, the session will be valid for 24H, after which you need to login again. If you open multiple terminals, the login session for oc will be active in all of them.

Helm login

If you are using Helm and you are not logged in from command line, you might get an error like:

$ helm ls
Error: Kubernetes cluster unreachable: Get "http://localhost:8080/version": dial tcp 127.0.0.1:8080: connect: connection refused

How to login in the registry?

In order to use LUMI-K internal container registry, it is necessary to login separately. Once you login, it is possible to use the client docker to pull and push from LUMI-K's registry.

Using personal account

After login with oc, it is possible to use the command to generate a token (oc whoami -t):

docker login -p $(oc whoami -t ) -u unused image-registry.apps.v1.lumi-k.eu

sudo use

Some docker client setups require to run the docker client as root using sudo. In this case the oc login command needs to also be run using sudo. This is because the login information is stored in the user's home directory, only the user that runs oc login is logged in to LUMI-K.

As a general recommendation, it is better to use other "rootless" runtimes like podman, when possible. It is also possible to configure Docker as non-root user. In order to do so, in most Linux distributions, you just need to type this command:

If you have installed docker.io:

sudo usermod -aG docker $USER

If you have installed Docker Snap (> Ubuntu 22):

sudo addgroup --system docker
sudo adduser $USER docker
newgrp docker
sudo snap disable docker
sudo snap enable docker

And then log out and log back to have the group membership re-evaluated.

Using a service account token

LUMI-K also offers the opportunity of using an internal service account to interact with the registry. This is recommended for automated procedures like a CI pipeline. Even though by default 3 internal service accounts are created in every LUMI-K project: builder, default and deployer, it is recommended to create a dedicated internal service account and assign to it the system:image-pusher role.

oc create serviceaccount pusher
oc policy add-role-to-user system:image-pusher -z pusher
docker login -p $(oc create token pusher) -u unused image-registry.apps.v1.lumi-k.eu

Use the command oc create token to generate a new token for the service account.

For example, you can run oc create token pusher --duration=87600h to create a token valid for 10 years.

CLI cheat sheet

Basic usage:

oc <command> <--flags>
oc help <command>

Examples:

List LUMI-K projects:

oc get projects

Switch the context to project my-project:

oc project my-project

Show all pods in the current project:

oc get pods

Show all pods in a specific project <my-other-name-space>:

oc get pods -n <my-other-project>

Show all pods that have the key-value pair app: myapp in metadata.labels:

oc get pods --selector app=myapp

Print the specifications of the pod mypod in YAML

oc get pod mypod -o yaml

Create any kubernetes object from its YAML definition:

oc create -f my-object.yaml

Other useful commands

• oc replace replaces an object. Example: oc replace -f file.yaml
• oc delete deletes an object . Example: oc delete pod my-pod-name
• oc apply update/create an object using its YAML definition . Example oc apply -f file.yaml
• oc explain prints out the YAML definition structure of a given object. Example: oc explain pod
• oc edit open an editor for updating an object YAML definition. Example: oc edit Deployment my-deploy

Abbreviations

Object types have abbreviations that are recognized in the CLI:

Abbreviation	Meaning
is	ImageStream
svc	Service
bc	BuildConfig
rc	ReplicationController
pvc	PersistentVolumeClaim

Further documentation

See the official documentation for more information about using the command line interface:

• OKD documentation: CLI reference
